Apache NiFi User Guide

When you are adding a component, you can sort on version number or filter based on originating source.

To sort based on version, click the version column to display in ascending or descending version order.

To filter based on source group, click the source drop-down in the upper left of your Add Component dialog, and select the group you want to view.

To change a component version, perform the following steps.

When you are configuring a component, you can also view information about version dependencies.

In the following example, MyProcessor version 1.0 is configured properly with the controller service StandardMyService version 1.0:

If the version of MyProcessor is changed to an incompatible version (MyProcessor 2.0), validation errors will be displayed on the processor:

and an error message will be displayed in the processor’s controller service configuration since the service is no longer valid:

The first tab in the Processor Configuration dialog is the Settings tab:

This tab contains several different configuration items. First, it allows the DFM to change the name of the Processor. The name of a Processor by default is the same as the Processor type. Next to the Processor Name is a checkbox, indicating whether the Processor is Enabled. When a Processor is added to the canvas, it is enabled. If the Processor is disabled, it cannot be started. The disabled state is used to indicate that when a group of Processors is started, such as when a DFM starts an entire Process Group, this (disabled) Processor should be excluded.

Below the Name configuration, the Processor’s unique identifier is displayed along with the Processor’s type and NAR bundle. These values cannot be modified.

Next are two dialogues for configuring 'Penalty Duration' and 'Yield Duration'. During the normal course of processing a piece of data (a FlowFile), an event may occur that indicates that the data cannot be processed at this time but the data may be processable at a later time. When this occurs, the Processor may choose to Penalize the FlowFile. This will prevent the FlowFile from being Processed for some period of time. For example, if the Processor is to push the data to a remote service, but the remote service already has a file with the same name as the filename that the Processor is specifying, the Processor may penalize the FlowFile. The 'Penalty Duration' allows the DFM to specify how long the FlowFile should be penalized. The default value is 30 seconds.

Similarly, the Processor may determine that some situation exists such that the Processor can no longer make any progress, regardless of the data that it is processing. For example, if a Processor is to push data to a remote service and that service is not responding, the Processor cannot make any progress. As a result, the Processor should 'yield', which will prevent the Processor from being scheduled to run for some period of time. That period of time is specified by setting the 'Yield Duration'. The default value is 1 second.

The last configurable option on the left-hand side of the Settings tab is the Bulletin level. Whenever the Processor writes to its log, the Processor also will generate a Bulletin. This setting indicates the lowest level of Bulletin that should be shown in the User Interface. By default, the Bulletin level is set to WARN, which means it will display all warning and error-level bulletins.

The second tab in the Processor Configuration dialog is the Scheduling Tab:

The Properties tab provides a mechanism to configure Processor-specific behavior. There are no default properties. Each type of Processor must define which Properties make sense for its use case. Below, we see the Properties tab for a RouteOnAttribute Processor:

This Processor, by default, has only a single property: 'Routing Strategy'. The default value is 'Route to Property name'. Next to the name of this property is a small question mark symbol ( ). This help symbol is seen in other places throughout the User Interface, and it indicates that more information is available. Hovering over this symbol with the mouse will provide additional details about the property and the default value, as well as historical values that have been set for the Property.

Clicking on the value for the property will allow a DFM to change the value. Depending on the values that are allowed for the property, the user is either provided a drop-down from which to choose a value or is given a text area to type a value:

In the top-right corner of the tab is a button for adding a New Property. Clicking this button will provide the DFM with a dialog to enter the name and value of a new property. Not all Processors allow User-Defined properties. In processors that do not allow them, the Processor becomes invalid when User-Defined properties are applied.

Selected Processors support configurable Sensitive Value status for User-Defined properties. Processors must indicate support for configurable Sensitive Value status, otherwise the Sensitive Value selection will be disabled in the Add Property dialog.

Selecting Yes for the Sensitive Value setting instructs NiFi to handle the property value as sensitive for configuration persistence and framework operations. NiFi encrypts Sensitive Values when storing the flow configuration and does not include Sensitive Values in exported Flow Definitions.

RouteOnAttribute allows User-Defined properties and will not be valid until the user has added a property.

Note that after a User-Defined property has been added, an icon will appear on the right-hand side of that row ( ). Clicking it will remove the User-Defined property from the Processor.

Some processors also have an Advanced User Interface (UI) built into them. For example, the UpdateAttribute processor has an Advanced UI. To access the Advanced UI, click the "Advanced" button that appears at the bottom of the Configure Processor window. Only processors that have an Advanced UI will have this button.

Some processors have properties that refer to other components, such as Controller Services, which also need to be configured. For example, the GetHTTP processor has an SSLContextService property, which refers to the StandardSSLContextService controller service. When DFMs want to configure this property but have not yet created and configured the controller service, they have the option to create the service on the spot, as depicted in the image below. For more information about configuring Controller Services, see the Controller Services section.

The Relationships tab contains an 'Automatically Terminate / Retry Relationships' section. Each of the Relationships that is defined by the Processor is listed here, along with its description.

The last tab in the Processor configuration dialog is the Comments tab. This tab simply provides an area for users to include whatever comments are appropriate for this component. Use of the Comments tab is optional:

You can access additional documentation about each Processor’s usage by right-clicking on the Processor and selecting 'Usage' from the context menu. Alternatively, select Help from the Global Menu in the top-right corner of the UI to display a Help page with all of the documentation, including usage documentation for all the Processors that are available. Click on the desired Processor to view usage documentation.

This tab contains several different configuration items. First is the Process Group Name. This is the name that is shown at the top of the Process Group on the canvas as well as in the breadcrumbs at the bottom of the UI. For the Root Process Group (i.e., the highest level group), this is also the name that is shown as the title of the browser tab. Note that this information is visible to any other NiFi instance that connects remotely to this instance (using Remote Process Groups, a.k.a., Site-to-Site).

The next configuration element is the Process Group Parameter Context, which is used to provide parameters to components of the flow. From this drop-down, the user is able to choose which Parameter Context should be bound to this Process Group and can optionally create a new one to bind to the Process Group. For more information refer to Parameters and Parameter Contexts.

The next section provides configuration elements for determining how the Process Group should be scheduled to run. NiFi supports two different Execution Engines: The Traditional Execution Engine, and the Stateless Execution Engine. Additionally, the Execution Engine can be inherited from the parent Process Group, which is the default behavior. See Execution Engines for more information.

The next two elements, Process Group FlowFile Concurrency and Process Group Outbound Policy, are covered in the following sections.

The Controller Services tab in the Process Group configuration dialog is covered in Adding Controller Services for Dataflows.

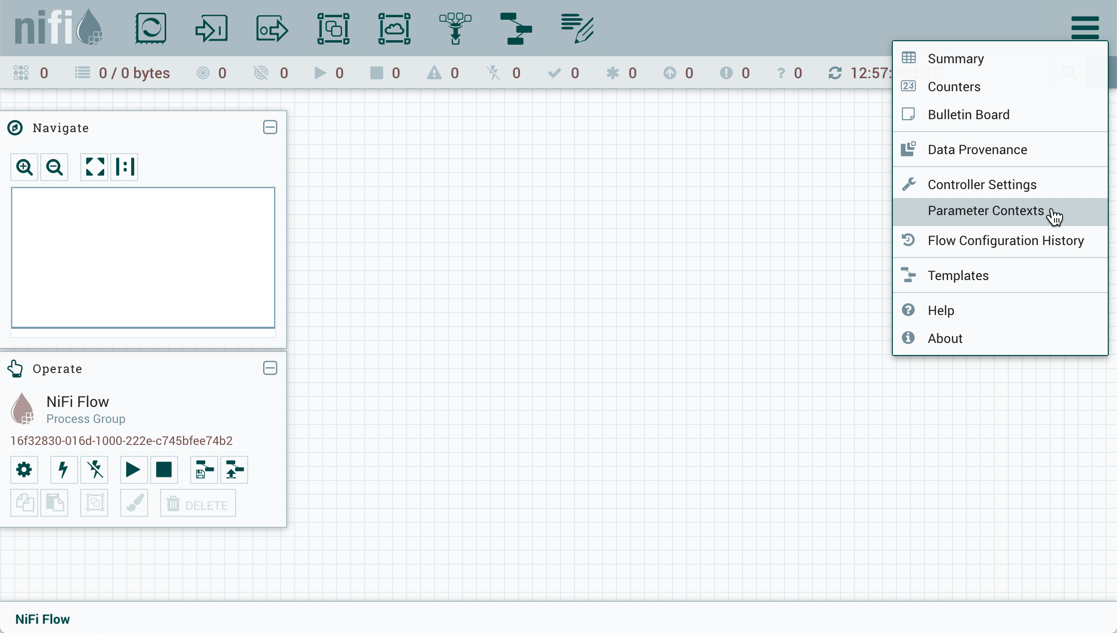

Parameters are created within Parameter Contexts. Parameter Contexts are globally defined/accessible to the NiFi instance. Access policies can be applied to Parameter Contexts to determine which users can create them. Once created, policies to read and write to a specific Parameter Context can also be applied (see Accessing Parameters for more information).

Parameters can be added during Parameter Context creation or added to existing Parameter Contexts.

During Parameter Context creation, select the "Parameters" tab. Click the + button to open the Add Parameter window.

To add parameters to an existing Parameter Context, open the Parameter Context window and click the Edit button () in the row of the desired Parameter Context.

On the "Parameters" tab, click the + button to open the Add Parameter window.

The Add Parameter window has the following settings:

Once these settings are configured, select "Apply". The Referencing Components lists the components referenced by the currently selected parameter. Add additional Parameters or edit any existing Parameters.

To complete the process, select "Apply" from the Parameter Context window. The following operations are performed to validate all components that reference the added or modified parameters: Stopping/Restarting affected Processors, Disabling/Re-enabling affected Controller Services, Updating Parameter Context.

The Referencing Components section now lists an aggregation of all the components referenced by the set of parameters added/edited/deleted, organized by process group.

When adding a Parameter that makes use of the Expression Language, it is important to understand the context in which the Expression Language will be evaluated. The expression is always evaluated in the context of the Processor or Controller Service that references the Parameter. Take, for example, a scenario where a Parameter with the name Time is added with a value of ${now()}. The Expression Language results in a call to determine the system time when it is evaluated. When added as a Parameter, the system time is not evaluated when the Parameter is added, but rather when a Processor or Controller Service evaluates the Expression. That is, if a Processor has a Property whose value is set to #{Time} it will function in exactly the same manner as if the Property’s value were set to ${now()}. Each time that the property is referenced, it will produce a different timestamp.

Furthermore, some Properties do not allow for Expression Language, while others allow for Expression Language but do not evaluate expressions against FlowFile attributes. To help understand how this works, consider a Parameter named File whose value is ${filename}. Then consider three different properties, each with a different Expression Language Scope and a FlowFile whose filename is test.txt. If each of those Properties is set to #{File}, then the follow table illustrates the resultant value.

For a component to reference a Parameter, its Process Group must first be assigned a Parameter Context. Once assigned, processors and controller services within that Process Group may only reference Parameters within that Parameter Context.

A Process Group can only be assigned one Parameter Context, while a given Parameter Context can be assigned to multiple Process Groups.

To assign a Parameter Context to a Process Group, click Configure, either from the Operate Palette or from the Process Group context menu.

In the Flow Configuration window, select the "General" tab. From the Process Group Parameter Context drop-down menu, select an existing Parameter Context or create a new one.

Select "Apply" to save the configuration changes. The Process Group context menu now includes a "Parameters" option which allows quick access to the Update Parameter Context window for the assigned Parameter Context.

If the Parameter Context for a Process Group is changed, all components that reference any Parameters in that Process Group will be stopped, validated, and restarted assuming the components were previously running and are still valid.

Parameter Providers allow parameters to be stored in sources external to NiFi (e.g. HashiCorp Vault). The parameters of a Parameter Provider can be fetched and applied to all referencing Parameter Contexts.

To add a Parameter Provider, select Controller Settings from the Global Menu.

This displays the NiFi Settings window. Select the Parameter Providers tab and click the + button in the upper-right corner to create a new Parameter Provider.

The Add Parameter Provider window opens. This window is similar to the Add Processor window. It provides a list of the available Parameter Providers on the right and a tag cloud, showing the most common category tags used for Parameter Providers, on the left. The DFM may click any tag in the tag cloud in order to narrow down the list of Parameter Providers to those that fit the categories desired. The DFM may also use the Filter field at the top-right of the window to search for the desired Parameter Provider or use the Source drop-down at the top-left to filter the list by the group who created them. Upon selecting a Parameter Provider from the list, the DFM can see a description of the provider below. Select the desired parameter provider and click Add, or simply double-click the name of the provider to add it.

Once a Parameter Provider has been added, the DFM may configure it by clicking the "Edit" button in the far-right column. Other buttons in this column include "Fetch Parameters", "Remove" and "Access Policies".

You can obtain information about Parameter Providers by clicking the "View Details", "Usage", and "Alerts" buttons in the left-hand column.

When the DFM clicks the "Edit" button, a Configure Parameter Provider window opens. It has three tabs: Settings, Properties, and Comments. This window is similar to the Configure Processor window. The Settings tab provides a place for the DFM to give the Parameter Provider a unique name (if desired). It also lists the UUID, Type, and Bundle information for the provider and displays a list of other components (e.g. parameter contexts) that reference the parameter provider. The DFM may hover the mouse over the question mark icons to see more information about each setting.

The Properties tab lists the various properties that may be configured for the parameter provider. The DFM may hover the mouse over the question mark icons to see more information about each property.

The Comments tab is just an open-text field, where the DFM may include comments about the provider. After configuring the Parameter Provider, click "Apply" to save the configuration and close the window, or click "Cancel" to discard the changes and close the window.

When you want to fetch parameters from the Parameter Provider, click the "Fetch" button ().

User privileges to Parameters are managed via access policies on the following levels:

To add a Management Controller Service, select Controller Settings from the Global Menu.

This displays the NiFi Settings window. The window has six tabs: General, Management Controller Services, Reporting Tasks, Flow Analysis Rules, Registry Clients and Parameter Providers. The General tab provides settings for the overall maximum thread counts of the instance.

To the right of the General tab is the Management Controller Services tab. From this tab, the DFM may click the + button in the upper-right corner to create a new Controller Service.

The Add Controller Service window opens. This window is similar to the Add Processor window. It provides a list of the available Controller Services on the right and a tag cloud, showing the most common category tags used for Controller Services, on the left. The DFM may click any tag in the tag cloud in order to narrow down the list of Controller Services to those that fit the categories desired. The DFM may also use the Filter field at the top-right of the window to search for the desired Controller Service or use the Source drop-down at the top-left to filter the list by the group who created them. Upon selecting a Controller Service from the list, the DFM can see a description of the service below. Select the desired controller service and click Add, or simply double-click the name of the service to add it.

Once you have added a Controller Service, you can configure it by clicking the "Configure" button in the far-right column. Other buttons in this column include "Enable", "Remove" and "Access Policies".

You can obtain information about Controller Services by clicking the "Usage", "Comments" and "Alerts" buttons in the left-hand column.

When the DFM clicks the "Configure" button, a Configure Controller Service window opens. It has three tabs: Settings, Properties,and Comments. This window is similar to the Configure Processor window.

The Settings tab provides a place for the DFM to give the Controller Service a unique name (if desired). It also lists the UUID, Type, Bundle and Support information for the service and provides a list of other components (reporting tasks or other controller services) that reference the service.

Finally, the Bulletin level is able to be modified. Whenever the Controller Service writes to its log, the Controller Service will also generate a Bulletin. This setting indicates the lowest level of Bulletin that should be shown in the User Interface. By default, the Bulletin level is set to WARN, which means it will display all warning and error-level bulletins.

The Properties tab lists the various properties that apply to the particular controller service. As with configuring processors, the DFM may hover over the question mark icons to see more information about each property.

The Comments tab is just an open-text field, where the DFM may include comments about the service. After configuring a Controller Service, click "Apply" to save the configuration and close the window, or click "Cancel" to discard the changes and close the window.

To add a Controller Service for a dataflow, you can either right click a Process Group and select Configure, or click Configure from the Operate Palette.

When you click Configure from the Operate Palette with nothing selected on your canvas, you add a Controller Service for your Root Process Group. That Controller Service is then available to all nested Process Groups in your dataflow. When you select a Process Group on the canvas and then click Configure from either the Operate Palette or the Process Group context menu, the service will be available to all Processors and Controller Services defined in that Process Group and below.

Use the following steps to add a Controller Service:

After a Controller Service has been configured, it must be enabled in order to run. Do this using the "Enable" button () in the far-right column of the Controller Services tab. In order to modify an existing/running controller service, the DFM needs to stop/disable it (as well as all referencing reporting tasks and controller services). Do this using the "Disable" button (). Rather than having to hunt down each component that is referenced by that controller service, the DFM has the ability to stop/disable them when disabling the controller service in question. When enabling a controller service, the DFM has the option to either start/enable the controller service and all referencing components or start/enable only the controller service itself.

The Details tab of the 'Create Connection' dialog provides information about the source and destination components, including the component name, the component type, and the Process Group in which the component lives:

Additionally, this tab provides the ability to choose which Relationships should be included in this Connection. At least one Relationship must be selected. If only one Relationship is available, it is automatically selected.

The Settings tab provides the ability to configure the Connection’s Name, FlowFile Expiration, Back Pressure Thresholds, Load Balance Strategy and Prioritization:

The Connection name is optional. If not specified, the name shown for the Connection will be names of the Relationships that are active for the Connection.

After a connection has been drawn between two components, the connection’s configuration may be changed, and the connection may be moved to a new destination; however, the processors on either side of the connection must be stopped before a configuration or destination change may be made.

To change a connection’s configuration or interact with the connection in other ways, right-click on the connection to open the connection context menu.

The following options are available:

To add a bend point (or elbow) to an existing connection, simply double-click on the connection in the spot where you want the bend point to be. Then, you can use the mouse to grab the bend point and drag it so that the connection is bent in the desired way. You can add as many bend points as you want. You can also use the mouse to drag and move the label on the connection to any existing bend point. To remove a bend point, simply double-click it again.

Remote Process Group: In order to communicate with a remote NiFi instance via Site-to-Site, simply drag a Remote Process Group onto the canvas and enter the URL(s) of the remote NiFi instance (for more information on the components of a Remote Process Group, see the Remote Process Group Transmission section of this guide.) The URL is the same URL you would use to go to that instance’s User Interface or in the case of a cluster, the URLs of the cluster nodes. At this point, you can drag a connection to or from the Remote Process Group in the same way you would drag a connection to or from a Processor or a local Process Group. When you drag the connection, you will have a chance to choose which Port to connect to. Note that it may take up to one minute for the Remote Process Group to determine which ports are available.

If the connection is dragged starting from the Remote Process Group, the ports shown will be the Output Ports of the remote group, as this indicates that you will be pulling data from the remote instance. If the connection instead ends on the Remote Process Group, the ports shown will be the Input Ports of the remote group, as this implies that you will be pushing data to the remote instance.

Transport Protocol: On a Remote Process Group creation or configuration dialog, you can choose Transport Protocol to use for Site-to-Site communication as shown in the following image:

By default, it is set to RAW which uses raw socket communication using a dedicated port. HTTP transport protocol is especially useful if the remote NiFi instance is in a restricted network that only allow access through HTTP(S) protocol or only accessible from a specific HTTP Proxy server. For accessing through a HTTP Proxy Server, BASIC and DIGEST authentication are supported.

Local Network Interface: In some cases, it may be desirable to prefer one network interface over another. For example, if a wired interface and a wireless interface both exist, the wired interface may be preferred. This can be configured by specifying the name of the network interface to use in this box. If the value entered is not valid, the Remote Process Group will not be valid and will not communicate with other NiFi instances until this is resolved.

Retrieve Site-to-Site Details: If your NiFi is running securely, in order for another NiFi instance to retrieve information from your instance, it needs to be added to the Global Access "retrieve site-to-site details" policy. This will allow the other instance to query your instance for details such as name, description, available peers (nodes when clustered), statistics, OS port information and available Input and Output ports. Utilizing Input and Output ports in a secured instance requires additional policy configuration as described below.

Input Port: In order to allow another NiFi instance to push data to your local instance, you can simply drag an Input Port onto the Root Process Group of your canvas. After entering a name for the port, it will be added to your flow. You can now right-click on the Input Port and choose Configure in order to adjust the name and the number of concurrent tasks that are used for the port.

To create an Input Port for Site-to-Site in a child Process Group, enter the name for the port and select "Remote connections (site-to-site)" from the Receive From drop-down menu.

If Site-to-Site is configured to run securely, you will need to manage the input port’s "receive data via site-to-site" component access policy. Only those users who have been added to the policy will be able to communicate with the port.

Output Port: Similar to an Input Port, a DataFlow Manager may choose to add an Output Port to the Root Process Group. The Output Port allows an authorized NiFi instance to remotely connect to your instance and pull data from the Output Port. After dragging an Output Port onto the canvas, right-click and choose Configure to adjust the name and how many concurrent tasks are allowed. Manage the output port’s "receive data via site-to-site" component access policy to control which users are authorized to pull data from the instance being configured.

To create an Output Port for Site-to-Site in a child Process Group, enter the name for the port and select "Remote connections (site-to-site)" from the Send To drop-down menu.

In addition to other instances of NiFi, some other applications may use a Site-to-Site client in order to push data to or receive data from a NiFi instance.

The Traditional Engine schedules each Processor individually. One Processor may be configured to run once every five minutes, while another Processor is scheduled to run as fast as possible, using eight concurrent tasks. The primary job of the queue between Processors is to allow for the Processors to operate at different rates. If the source runs faster than the destination, it will queue up data until the configured backpressure threshold is reached. Then, the source will stop producing data so that the destination has the opportunity to catch up. If too many FlowFiles are queued up, the FlowFiles (i.e., the attributes, etc.) are swapped to disk in order to avoid exhausting the Java heap. This approach gives the flow developer very fine grained control over how many resources to dedicate to each step of the processing throughout the pipeline.

In contrast, the Stateless Engine uses a single thread to run the entire flow from start to finish. The source components are triggered first in order to bring data into the flow. If a FlowFile is brought into the flow, the destination of the queue where the data landed is triggered until it has worked off all of its data. Most of the time, this is a single invocation of the Processor. The next Processor in the flow is then triggered to run, and so forth. Any backpressure that is configured for the queues is ignored. FlowFiles are never swapped to disk. However, this is typically not a concern, as only a single FlowFile at a time is typically dealt with in a flow.

When configuring the Execution Engine to use for a Process Group, though, the flow developer is able to specify the Max number of Concurrent Tasks to use for the Stateless Engine. If the value is set to N, greater than 1, there will be N copies of the Stateless flow run concurrently. For each copy of the flow, the source components will be triggered, and then the next Processor in line, and so forth. It is important to note that if N is greater than 1, there will then be N copies of each Processor in the flow used to process data. Therefore, if the Processor needs to store objects internally, such as MergeContent, each copy of the flow has a separate copy of that internal state. As a result, if MergeContent is configured to require a minimum of 1,000 FlowFiles in order to merge and the flow is run with 8 Concurrent Tasks, each of the 8 flows may have up to 999 FlowFiles for a total of 7,992 FlowFiles without merging any data. Therefore, flow designers should be cautious when using the Stateless Engine in conjunction with Processors that must wait on some condition before proceeding.

Stateless Flows may also contain source Processors that are not to be run continually. For example, a GetFile Processor may be the first Processor in a flow. The desire may be to run the Processor only once every 5 minutes. This may complicate things, since Processors are not individually scheduled. To that end, all source Processors are checked in order to determine how often they should be scheduled. Whichever component has the smallest Run Schedule (i.e., is scheduled the fastest) will determine how frequently the Stateless flow should be scheduled. For example, if there is a ListFile Processor configured to run once every hour and a ListS3 Processor configured to run once every minute, both source Processors will be triggered to run once every minute.

When using the Stateless Engine, the Timer-Driven Scheduler is always used. CRON scheduling is not supported for Stateless flows at this time. If CRON scheduling is desired, it is often sufficient to use the Traditional Engine for the CRON driven Processor and then connect it to a Stateless Process Group.

The Traditional Engine allows configuring a Run Duration for each individual Processor. This often greatly improves performance. This is not available when using a Stateless flow. With a Stateless flow, this is instead managed for you automatically, depending on the Processors used in the flow. If any Processor in the flow requires being triggered serially, the Stateless Flow will not use a Run Duration greater than a single invocation. Otherwise, it will run for up to 100 milliseconds. If any invocation produces a failure, the Run Duration is cut short.

Transactionality is perhaps the most stark difference between the Traditional Engine and the Stateless Engine. With the Traditional Engine, the Processor is the transaction boundary. That is, a Processor performs some action on a FlowFile, and then the transaction is completed. The FlowFile is transferred to the next Processor in the flow, as the first Processor performs any sort of cleanup.

For example, consider a processor consuming from a JMS Queue. With the Traditional Engine, the Processor would consume the message from JMS. Then, it would create a FlowFile based on the JMS message, and transfer the FlowFile to the success Relationship and commit the session. At this point, the framework would ensure that the data has been persisted to the underlying repositories and add the FlowFile to the outbound queue. Finally, the JMS consumer would be given the opportunity to acknowledge receipt of the message.

At this point, any number of things may happen to the FlowFile. It may be dropped. It may be transformed. It may be pushed to two different destinations. Or it may stay in the flow because some downstream system, such as a database, is down. Regardless, though, the message has already been acknowledged and it will not be redelivered. Because of this, it is important that NiFi persist that data so that upon restart it can finish processing the data.

One powerful advantage of this paradigm is that the source need not be persistent or transactional. For example, a client could make an HTTP POST request to NiFi to provide data. As long as NiFi responds with a "200 OK" or a "201 Created" or similar message, it is okay to assume that the message will be processed according to the flow.

On the other hand, if the source of the data is, in fact, transactional, such as a JMS queue, this may be less desirable. If NiFi were to be shutdown, perhaps due to a hardware failure, that data that was already acknowledged will not be redelivered. The NiFi instance owns the data and must be brought back up in order to finish processing the data.

However, the semantics change when the Stateless Engine is used instead. The transaction boundary is no longer the Processor but instead becomes the entire Process Group. When the same flow is run using the Stateless Engine, the JMS consumer still receives a JMS message and creates a FlowFile from it. It still transfers the FlowFile to the success Relationship and commits the session. With the Stateless Engine, though, instead of persisting data to the underlying repository and giving the JMS consumer the opportunity to acknowledge receipt of the message, it instead just passes the FlowFile along to the next Processor. That Processor then handles the FlowFile and passes it on. The JMS consumer is not given the opportunity to acknowledge the message until the FlowFile has run through the entire flow successfully.

Now, this provides a very different way of thinking of thinking about how to build the flow. It also offers some important new capabilities. For example, we how have the ability to have a follow-on Processor indicate that there was a failure processing the data. In order to do this, an Output Port can be configured as a "Failure Port."

Now, if any FlowFile is routed to this Port, the entire transaction is rolled back. Any FlowFiles in the flow will be dropped. The JMS consumer will not acknowledge the message but instead will send back a "negative acknowledgment," or NAK. As a result, the JMS Broker will redeliver the message later. The main benefit to this approach is that if the NiFi instance were shutdown (for example, due to a hardware failure or rescheduling the NiFi instance to run elsewhere in a cloud environment), another NiFi instance (or some other software entirely) could consume the JMS message and handle it. There is no need to ensure that the NiFi instance is able to restart.

Additionally, and related to the notion of failures, is the notion of timeouts when using the Stateless Engine. One of the configuration options for a Process Group is the "Stateless Flow Timeout." This allows us to ensure that the data is processed within some expected amount of time and if not rollback the entire transaction. By default, the timeout is set to 1 minute. Any data that is brought into the Stateless flow must finish processing within 1 minute, or a timeout will occur, and the entire transaction will be rolled back. The Traditional Engine has no notion of timeouts for a dataflow.

We must also consider the transactionality that is used whenever a Stateless flow starts with an Input Port. We might, for example, consume data from any number of sources with a Process Group that uses the Traditional Engine. Then, we might process the data using a Stateless flow. In this case, if any data is routed to a Failure Port, the entire transaction is rolled back, and the original input FlowFile is instead transferred to the Failure Port - NOT the FlowFile that triggered the failure. If a timeout occurs, the original FlowFile is penalized and transferred back to its original queue so that it can be processed again.

A key benefit of NiFi is its data durability. While many ETL products and data movement offerings provide in-memory processing, NiFi instead provides data durability. All data is persisted to its underlying repositories. Upon restart, NiFi continues processing data where it left off. This means that it is capable of handling virtually any protocol reliably, even protocols where the receiver does not send back application-level acknowledgments, such as direct TCP connections.

However, while this is true of the Traditional Engine, it is not true of the Stateless Engine. In contrast, the Stateless Engine, by design, drops data upon restart. This means that the Stateless Engine is not a safe choice if data must be persisted by NiFi. However, for protocols that provide application-level acknowledgments such as JMS, Apache Kafka, Amazon Kinesis, etc. it can be a great choice. Additionally, for protocols such as HTTP, NiFi offers processors that are capable of receiving data, performing some processing, and then sending an acknowledgment. As such, it is safe even when NiFi is responsible for accepting incoming connections. The key here is the application-level acknowledgment message that is sent from NiFi.

NiFi offers the ability to order data in each queue by use of FlowFile Prioritizers. This allows the dataflow developer to determine that specific data is the most important and ensure that it is processed and/or sent to its destination first. This has proven to be particularly powerful at locations that have less reliable communication mediums, in which communications channels may be down intermittently and when up need to be taken advantage of to send the most important data first.

The Stateless Engine, however, is designed to process data with a higher degree of transactionality and does not generally buffer large amounts of data while the destination is unreachable. As such, it ignores the configured Prioritizers and always processes data using a First In First Out (FIFO) queue.

Under normal circumstances, the Data Provenance that is produced by flows using the Stateless Engine are persisted to the same underlying Provenance Repository as the Traditional Engine and as such the Provenance data appears in the same way. However, because the Stateless Engine may roll back transactions on failure, we do to consider how this plays into the role of Data Provenance. Otherwise, we might show that the content was modified, then the attribute modified, and the data cloned - but upon restart the data is would still be queued up outside of the Stateless Engine, and this would lead us to believe that the FlowFile’s content were different than they truly are.

As such, the Provenance Events are not stored into the Provenance Repository until the transaction completes for a Stateless flow. If a FlowFile is routed to a Failure Port, or if the invocation times out, the Provenance Events are discard. There are, however, two exceptions to this rule: SEND and REMOTE_INVOCATION events. Even if the transaction is rolled back, the fact that data was sent, or that some remote invocation occurred cannot be rolled back. Therefore, the Provenance Repository is still updated to note the fact that these events occurred.

NiFi’s site-to-site mechanism provides a way to send FlowFiles, including their attributes from one NiFi instance to another in an efficient, reliable, and secure manner. This requires that one NiFi instance use a Remote Process Group, which acts as a client and establishes the socket connection to the other NiFi instance. When using the Traditional Engine, either NiFi instance can act as the client or the server. That is, it can make use of both the Remote Process Group, as well as Input Ports that allow for remote connections. When using the Stateless Engine, the NiFi instance may make use of the Remote Process Group and act as a client to either push or pull data. However, it cannot make use of Input Ports that allow remote connections and therefore cannot act as the server.

When the Stateless Engine is used and the number of Concurrent Tasks is set to a value greater than one, each Concurrent Task is run with a different copy of each Processor. Because of this, Processors that require keeping internal state will not share that state between copies of the flow. For example, if a flow has a MergeContent processor that must accumulate 1,000 FlowFiles before merging the data, and the number of Concurrent Tasks is set to 3, each concurrent task may have up to 999 FlowFiles, for a total of 2,997 FlowFiles without the data being merged. This is important to keep in mind if designing flows where the Processor requires internal state.

Additionally, because of this, any flow that consists of a Processor scheduled to run on the Primary Node Only is limited to use a single Concurrent Task. Setting the value higher than one will result in a warning being logged when started and a value of one will be used, regardless of the configured value.

The Stateless Engine allows configuring an Output Port as a "Failure Port" meaning that if any FlowFile reaches the Output Port, the entire transaction is failed. This Output Port can live at any level within the Process Group hierarchy. If this occurs, the entire transaction is rolled back. That is, any FlowFiles that are currently processing within that transaction will be discarded. If the source of the transaction is an Input Port, the FlowFile that was brought in via that Input Port will be transferred to the given Failure Output Port. If the source of the transaction was a Processor, that Processor will be given the opportunity to send a negative acknowledgment ("NAK") or cleanup any resources, as necessary.

If a Stateless flow does not complete within the configured timeout period, the transaction is also rolled back, in much the same way as when a FlowFile is routed to a Failure Port. However, there is one very notable difference. Whereas a Failure Port indicates where to route the incoming FlowFile, a timeout has no such output denoted. Instead, the input FlowFile, if one exists, is penalized and added back to its input queue so that it can be tried again after some delay.

Because a Stateless transaction may be rolled back, it is generally a best practice to have a flow consist of a single source and a single destination. Consider the case when a FlowFile is received from a single source. It is then to be sent to three different destinations. After being successfully sent to two of the three destinations, it fails to be sent to third destination because the destination is down for periodic maintenance. As a result, the transaction is rolled back. The data is then pulled a second time. It is again sent to first two destinations successfully and again fails to be pushed to the third destination. It is again rolled back. This may happen many times, and each time the data is sent to the first two destinations. Or perhaps sometimes it is sent only to the first destination and the second fails.

In such a situation, the flow is very inefficient at best, when the first two destinations are idempotent. At worst, the first and second destinations are not idempotent, and there is a very significant, uncontrolled amount of data duplication.

This problem is further compounded if the flow is made up of multiple destinations. Consider a flow, for instance, that has two Processors, each responsible for consuming data from a different source. That data is then merged together into a single FlowFile, which is then pushed to the three destinations. Now, if data is rolled back the source Processors may pull different data from each of the sources. As a result, the data published cannot be idempotent, as it is made up of different data each time, and the pairing of data from each of those sources is different each time.

As a result, it is recommended to keep Stateless flows to a single source and a single destination. At a minimum, the destinations other than the last should be idempotent.

Because each concurrent task runs a separate copy of the Stateless flow, it is important to keep in mind that the minimum number of incoming FlowFiles needed for a merge (via MergeContent or MergeRecord, for example) may increase by a multiple of the number of concurrent tasks. As such, it may take a significant amount of time for that that much data to queue up. Additionally, the Stateless flow has a timeout to limit how long it can run. Because of this, it is important to use caution when configuring limits for these types of Processors.

It is always advisable to set a Max Bin Age less than the timeout of the Stateless flow in order to ensure that the dataflow doesn’t continually timeout. While it is true that continually causing a timeout that rolls back the transaction should not prevent proper data delivery, it can cause unnecessary latency and use significant amounts of computing resources if transactions are continually rolled back.

As a result, it is recommended that if using Processors that merge together multiple FlowFiles that the minimum limits are kept small enough that transactions will not continually timeout, or that a Max Bin Age, or something equivalent, is configured for such Processors so that they may successfully continue even when large amounts of data are not available. It is also worth noting that if larger output FlowFiles are desirable, using a lower number of Concurrent Tasks is more likely to produce the larger outputs, since the incoming data will be split across fewer copies of the flow.

There are times when the DFM may want to either enable or disable transmission for only a specific port within the Remote Process Group. This can be accomplished by right-clicking on the Remote Process Group and choosing the "Manage remote ports" menu item. This provides a configuration dialog from which ports can be configured:

The left-hand side lists all of the Input Ports that the remote instance of NiFi allows data to be sent to. The right-hand side lists all of the Output Ports from which this instance is able to pull data. If the remote instance is using secure communications (the URL of the NiFi instance begins with https://, rather than http://), any ports that the remote instance has not made available to this instance will not be shown.

Each port is shown with its Name, its Description, configured number of Concurrent Tasks, and whether or not data sent to this port will be Compressed. Additionally, the port’s configured Batch Settings (Count, Size and Duration) are displayed. To the left of this information is a toggle switch to turn the port on or off. Ports that have no connections attached to them are grayed out:

The on/off toggle switch provides a mechanism to enable and disable transmission for each port in the Remote Process Group independently. Those ports that are connected but are not currently transmitting can be configured by clicking the pencil icon () below the on/off toggle switch. Clicking this icon will allow the DFM to change the number of Concurrent Tasks, whether or not compression should be used when transmitting data to or from this port, and Batch Settings.

For an Input Port, the batch settings control how NiFi sends data to the remote input port in a transaction. NiFi will transfer FlowFiles, as they are queued in incoming relationships, until any of the limits (Count, Size, Duration) is met. If none of the settings are configured, a 500 milliseconds batch duration is used by default.

For an Output Port, the batch settings tells the remote NiFi how NiFi prefers to receive data from the remote output port in a transaction. The remote NiFi will use the specified settings (Count, Size, Duration) to control the transfer of FlowFiles. If none of the settings are configured, a 5 seconds batch duration is used by default.

Here is an example of aligning components vertically on your canvas. With all components selected/highlighted, right-click:

and select "Align vertically" to achieve these results:

Here is an example of aligning components horizontally on your canvas. With all components selected/highlighted, right-click:

and select "Align horizontally" to achieve these results:

The local changes made to a versioned process group can be viewed in the Show Local Changes dialog by selecting "Version→Show local changes" from the context menu.

You can navigate to a component by selecting the "Go To" icon () in its row.

Revert the local changes made to a versioned process group by selecting "Version→Revert local changes" from the context menu. The Revert Local Changes dialog displays a list of the local changes for the DFM to review and consider prior to initiating the revert. Select "Revert" to remove all changes.

You can navigate to a component by selecting the "Go To" icon () in its row.

To commit and save a flow version, select "Version→Commit local changes" from the context menu. In the Save Flow Version dialog, add comments if desired and select "Save".

Local changes can not be committed if the version that has been modified is not the latest version. In this scenario, the version state is "Locally modified and stale" ().

In this first example, sys_admin creates a KeytabCredentialsService controller service at the root process group level.

KeytabCredentialService controller service is a restricted component that requires 'access keytab' permissions:

Sys_admin creates a process group ABC containing a flow with GetFile and PutHDFS processors:

GetFile processor is a restricted component that requires 'write filesystem' and 'read filesystem' permissions:

PutHDFS is a restricted component that requires 'write filesystem' permissions:

The PutHDFS processor is configured to use the root process group level KeytabCredentialsService controller service:

Sys_admin saves the process group as a versioned flow:

Test_user changes the flow by removing the KeytabCredentialsService controller service:

If test_user chooses to revert this change:

the revert is successful:

Additionally, if test_user chooses to import the ABC versioned flow:

The import is successful:

Now, consider a second scenario where the controller service is created on the process group level.

Sys_admin creates a process group XYZ:

Sys_admin creates a KeytabCredentialsService controller service at the process group level:

The same GetFile and PutHDFS flow is created in the process group:

However, PutHDFS now references the process group level controller service:

Sys_admin saves the process group as a versioned flow.

Test_user changes the flow by removing the KeytabCredentialsService controller service. However, with this configuration, if test_user attempts to revert this change:

the revert is unsuccessful because test_user does not have the 'access keytab' permissions required by the KeytabCredentialService controller service:

Similarly, if test_user tries to import the XYZ versioned flow:

The import fails:

Sometimes, a user may need to track down the original FlowFile that another FlowFile was spawned from. For example, when a FORK or CLONE event occurs, NiFi keeps track of the parent FlowFile that produced other FlowFiles, and it is possible to find that parent FlowFile in the Lineage. Right-click on the event in the lineage graph and select "Find parents" from the context menu.

Once "Find parents" is selected, the graph is re-drawn to show the parent FlowFile and its lineage as well as the child and its lineage.

In the same way that it is useful to find a parent FlowFile, the user may also want to determine what children were spawned from a given FlowFile. To do this, right-click on the event in the lineage graph and select "Expand" from the context menu.

Once "Expand" is selected, the graph is re-drawn to show the children and their lineage.

The default values have been chosen for a Persistent Provenance configuration. The following exceptions and recommendations should be noted when using the Write Ahead configuration:

Once these property changes have been made, restart NiFi.

Note: Detailed descriptions for each of these properties can be found in System Properties.
